BMS:n sisäänrakennettu pitkäikäinen LiFePO4 12V 100Ah akku

2023-11-07 05:54

määrittely

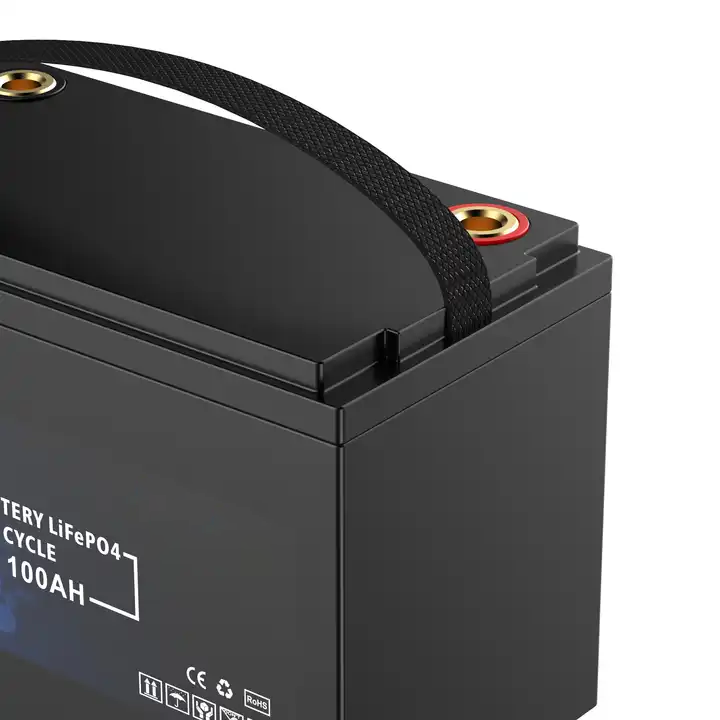

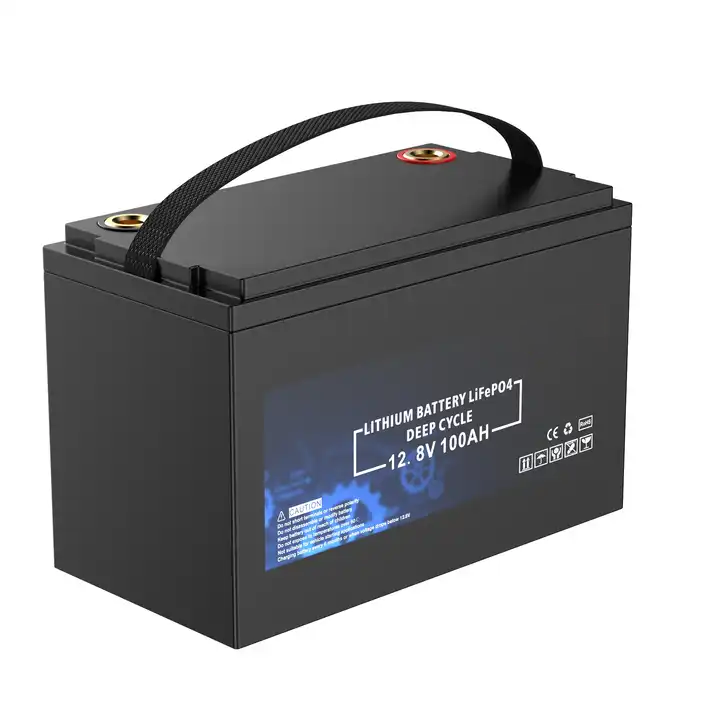

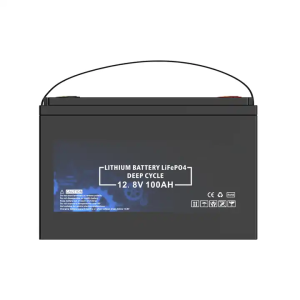

12V 100Ah LifePO4 Battery Pack With 100A BMS
ElectricNimellisjännite12.8V
 Nimelliskapasiteetti100Ah
 Stored energy1280wh
 Pyöräilyikä6000 times (Cycle @RT, 1C rate,85%D\OD)
 Kokoonpano4S1P
 Self discharge< 3% per month


standardi
Charge

LatausmenetelmäCC/CV : Constant Current / Constant Voltage
 End-of charge voltage14.6V
 Jatkuva latausvirta50A
 Maximum charge current70A


standardi
Purkaa

Jatkuva purkausvirta100A
 Maximum discharge current (< 3s)150A (3S)
 End-of discharge voltage9.2V


Environment

Charge temperature range0°C to +50°C
 Discharge temperature range-20 ℃ ~ 55 ℃
 Säilytyslämpötila0°C- +50°C @60±25% relative humidity
MekaaninenCell assembly3.2v 100ah prismatic LifePO4
 Casing materialABS Case
 Mitatmuokata
 Paino12kg
 TerminaaliM8






Battery Protection Management System

BMS -toiminto

Built-in 100A BMS

Automatic Functions
Low Voltage Disconnect
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Ylikuormitussuojaus
Over Discharge Protection
Over Temperature Protection
Internal Cell Balancing

Takuu5 Years warranty, In use process, if the product quality problems will be free replacement parts.Our company will replace any defective item free of charge.
hakemusSolar Energy,Solar Street Light,Wind Energy,Household Energy,RV campers, Marine,Trolling Motor, Replace lead-acid batteries, LED light, Backup battery, Power battery.
OEM / ODMSticker/ Logo/ package / connector
sertifiointiCE, MSDS and UN38.3, etc

AIN12-100 LifePO4 battery pack use the grade A  LifePO4 battery, whose life span is 10 times longer than the traditional lead acid batteries, and it is lighter. For the capacity, Lifepo4 batteries can provide twice the battery capacity in the same amount of space. With operating ranges from -40 to 158 degrees Fahrenheit, LifePO4 handle far wider variations in temperature.

hakemus

AIN-12 series battery pack can provide power for various equipment, such as the golf carts, RV, electric boat, street light and etc. With high capacity, which can meet all kinds of demands.

♦ Aurinko-tuulivoimajärjestelmä
♦ Power tools: electric drills, toys Energy Storage
♦ City Grid (On/Off) Back-up solar System and UPS
♦ Turvallisuus ja elektroniikka, siirrettävä myyntipiste, Mining Lihgt / Torch / LED-valo / hätävalo
♦ Telcom Base, CATV-järjestelmä, tietokonepalvelinkeskus, Medical Instrumnt, sotilastarvikkeet Muut sovellukset
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.



Yrityksemme

Pakkaus ja toimitus

Toimitusaika
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quantity or other reason.
maksu
1. We accept T/T , PAYPAL , Western Union, Cash and so on

2. FOB, EXW ja CIF ovat kaikki saatavilla
3. Samples can accept Paypal.
Toimitustapa
DHL, UPS, FedEx, Special Line, Sea shipping, Customer own forwarder

Ohje

Q1: Can I get free samples?

A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?

A2: It depends on the order quantity. Usually, for small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?

A3: Payment terms: via T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: Which company will be used for shipment, DHL, UPS or others?

A4: Usually, we ship batteries via DHL, UPS and FedEx.

Q5: What kind of packages do you ship? Can I have a customized package?

A5:We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by the buyer, for more details, please contact us.

Q6: Your factory or trading company?

A6: We are a professional battery manufacturer with our own factory and brand. We provide various OEM / ODM services to our customers all over the world.

Q7: Where is your company's main market?

A7: Our company focuses on North America, Europe, Korea and Japan market for high quality batteries.

Q8: What are your advantages compared to other suppliers?

A8 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and make sure the quality is approved by customers.

A8 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. We provide the best project solution for our customers. We ship on time.

Q9: Voimmeko vierailla tehtaallasi ennen tilauksen tekemistä?

A9: Of course no problem, we are always welcome to visit our factory.

Huomautus: Olemme akkujen valmistaja. Kaikki tuotteet eivät tue vähittäiskauppaa, me teemme vain B2B -liiketoimintaa. Ota yhteyttä tuotteiden hintoihin!
