Räätälöity syväkierto 36V 48V 72V 50ah 80ah 100ah litiumakku golfkärryyn matkailuautoon

2024-03-15 02:39

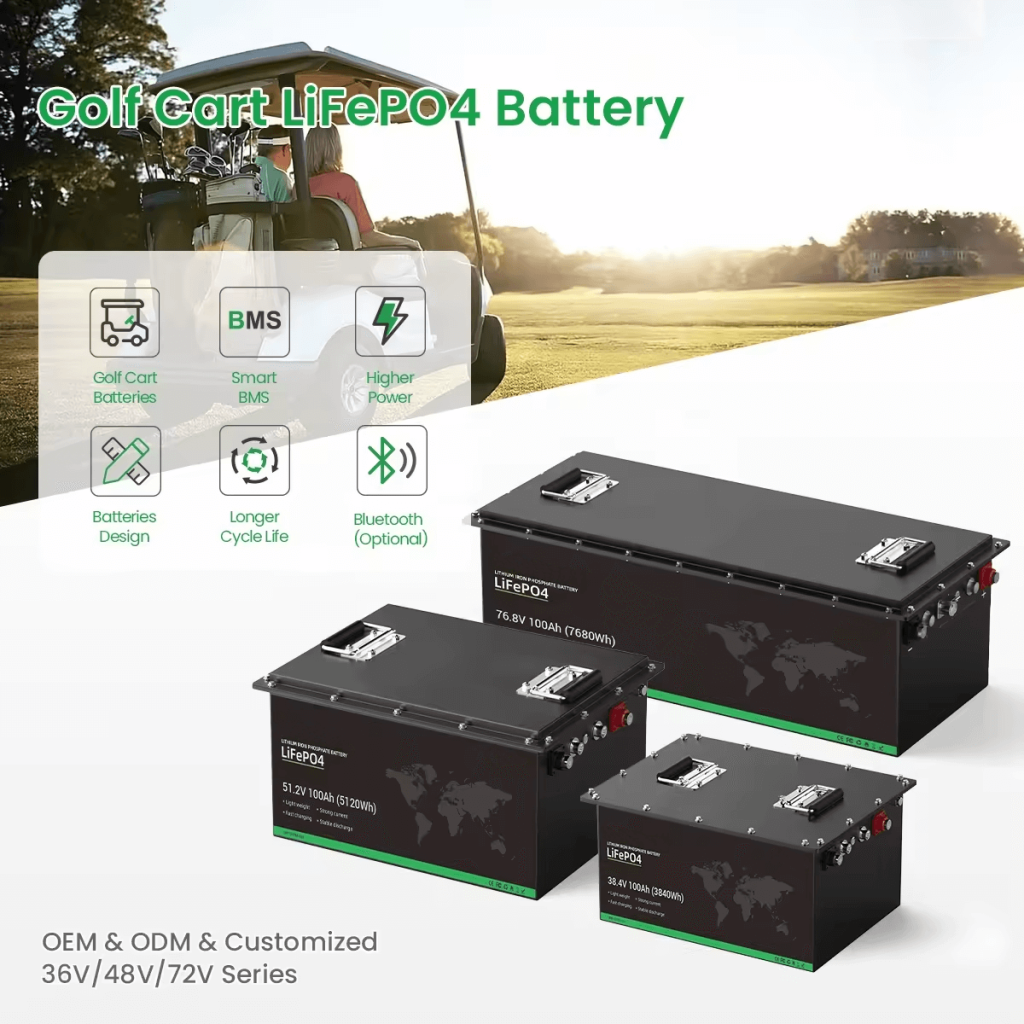

LiFePO4 Battery for Golf Cart ( OEM/ODM )

TECHNICAL SPECIFICATION

Data sheetNimellisjänniteNimelliskapasiteettiNominal EnergyUlottuvuusPaino
36V  (Support Customized Capacity/Size)
LFP36-5038,4 V50Ah1920Wh522*238*218mm≈18.5kg
LFP36-6038,4 V60 Ah2304 Wh522*238*218mm≈21kg
LFP36-8038,4 V80Ah3072Wh522*238*218mm≈25.5kg
LFP36-10038,4 V100Ah3840Wh522*238*218mm≈31kg
48V  (Support Customized Capacity/Size)
LFP48-5051.2V50Ah2560Wh522*238*218mm≈25kg
LFP48-6051.2V60 Ah3072Wh522*238*218mm≈31kg
LFP48-8051.2V80Ah4096Wh522*238*218mm≈32.5kg

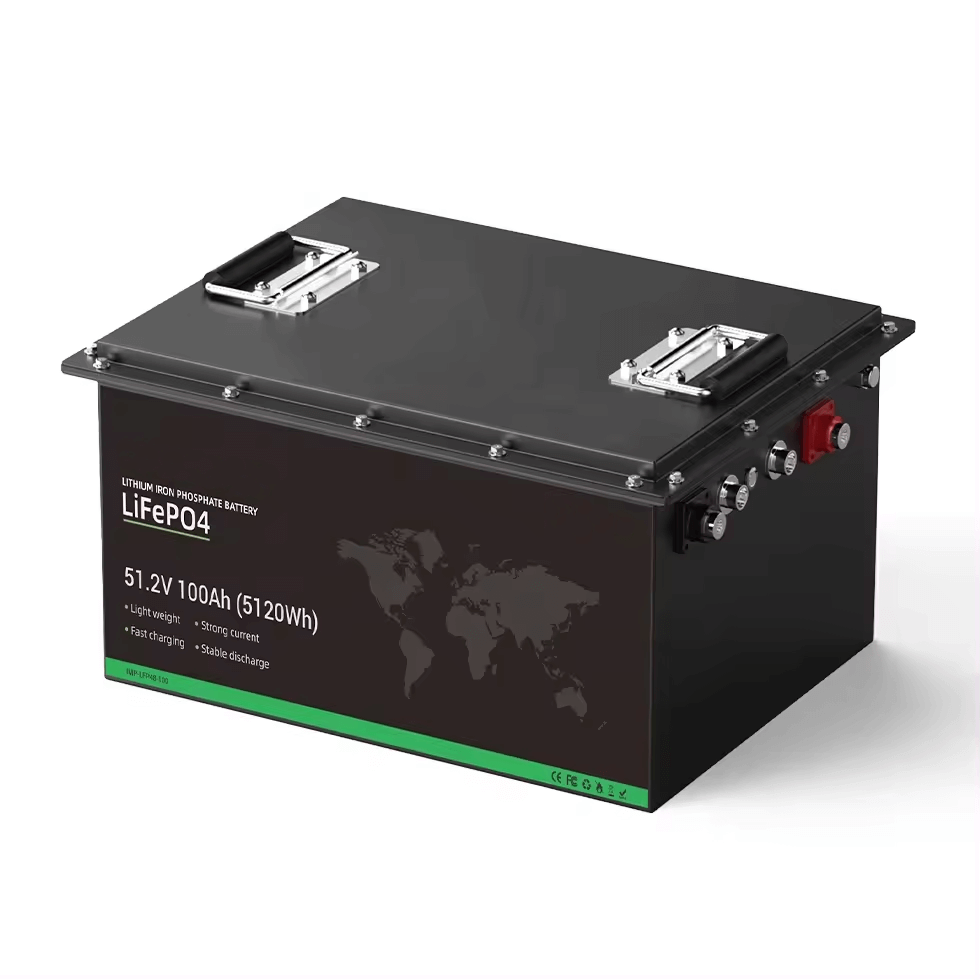

LFP48-10051.2V100Ah5120Wh640*245*220mm≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-5076,8V50Ah3840Wh470*330*150mm≈50kg

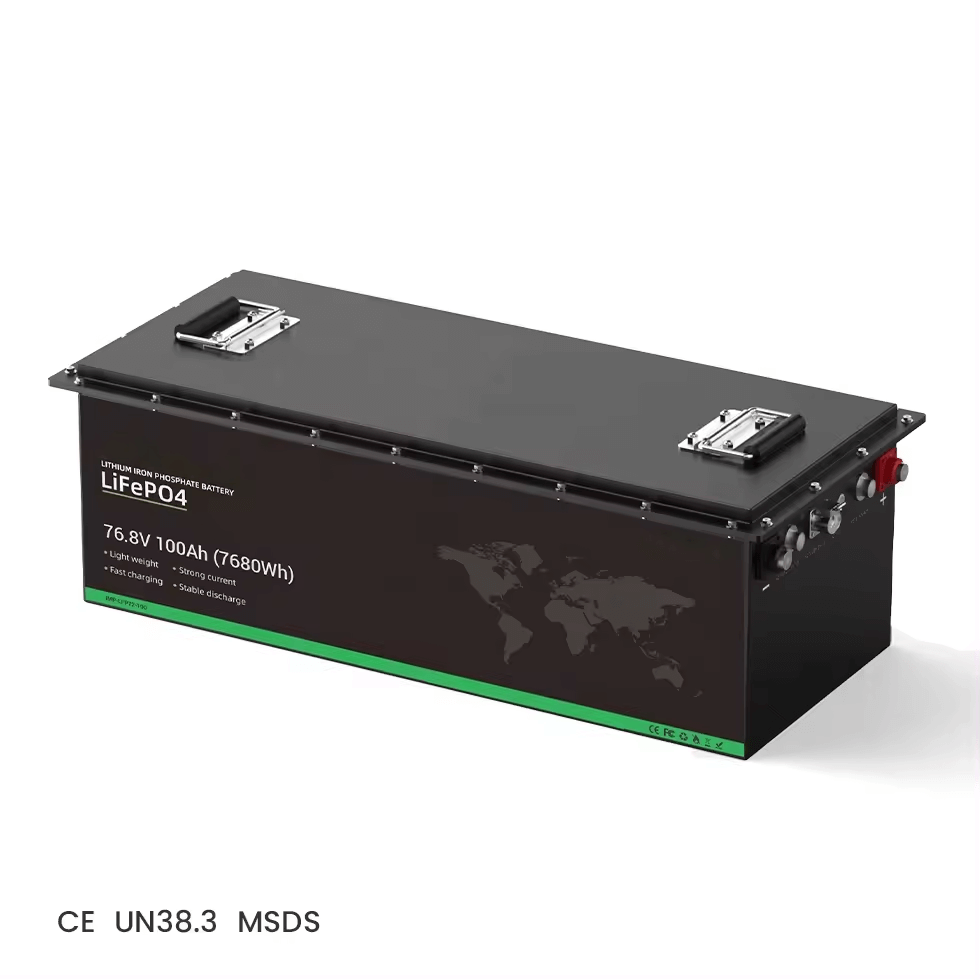

LFP72-10076,8V100Ah7680 Wh730*350*150mm≈65kg
General
Elinkaarit≥6000 cycles (80%DOD), at 25°C
Latauslämpötila0 ~ 45°C (32 ~ 113°F)
Purkauslämpötila-20 ~ 55°C(-4 ~ 131F)
Säilytyslämpötila-10 ~ 45°C(14 ~ 113°F)
Communication ModVehicle CAN/ Charge CAN/ Intranet CAN/

485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Esitys

  1. Single battery operation
  2. Little or no voltage drop
  3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

  1. No acid fumes or spills
  2. Reduce use of electricity
  3. Less waste
  4. 99% recyclable

hakemus

Tehtaamme



Toimitus ja pakkaus

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Suurten tilausten yhteydessä, kuljeta ilma- tai merenkulun kautta.

Ohje

K: Oletko kauppayhtiö tai valmistaja?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

K: Voinko saada näytteitä testattavaksi? Ja mikä on näytetilauksen läpimenoaika?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

K: Hyväksytkö OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

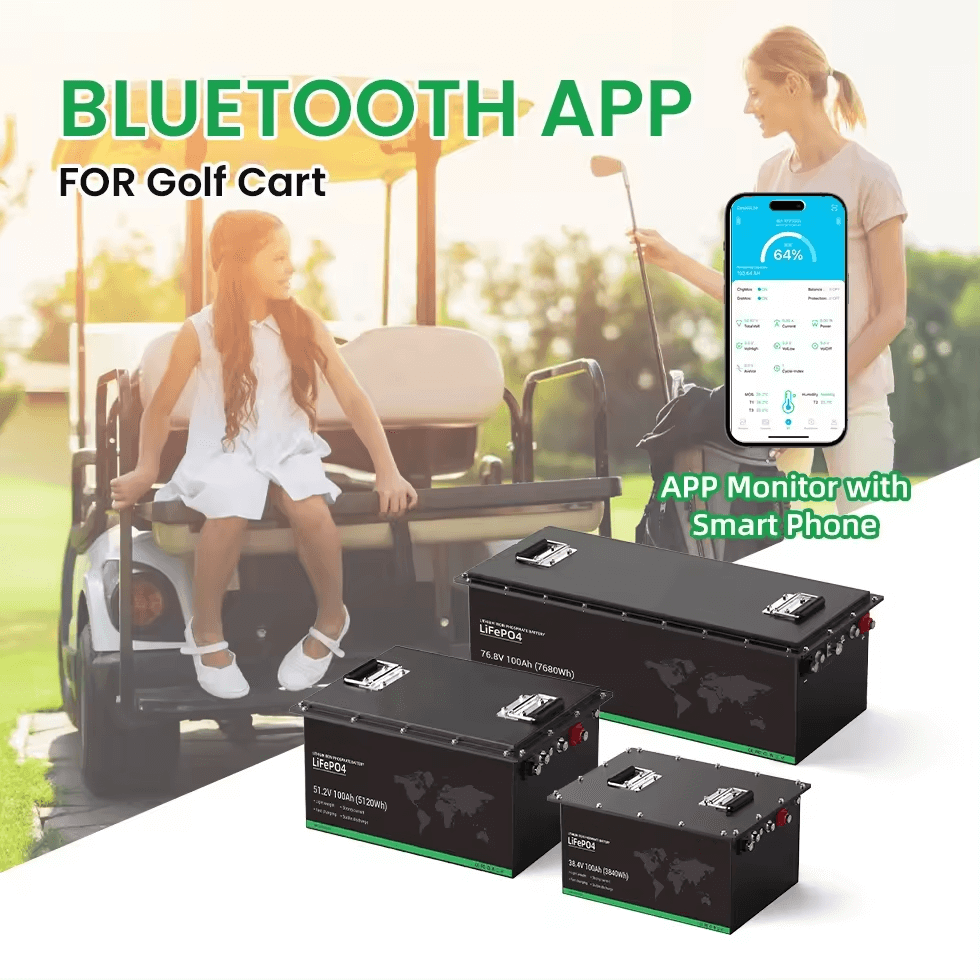

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
V: KYLLÄ, sovelluksen avulla voit lukea kunkin jännitteen milloin tahansa.

K: Onko akun todellinen kapasiteetti?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

K: Millaisia varmenteita sinulla on?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

K: Onko sinulla MOQ?
A: Ei rajoitettu. Pieni tilaus myös tervetulleita.Lisää määrää on parempi hinta, tarkistamme sinulle parhaan hinnan.

K: Mikä on maksuaikasi?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
V: Litiumlaturien käyttö akun herättämiseen. Litiumlaturi herättää akut automaattisesti.

Huomautus: Olemme akkujen valmistaja. Kaikki tuotteet eivät tue vähittäiskauppaa, me teemme vain B2B -liiketoimintaa. Ota yhteyttä tuotteiden hintoihin!
